1.1 kV Instrumentation Cables (Shielded & Screened)

PRIMECAB Instrumentation cables are specifically engineered for data transmission in process control, communication, and signaling systems. These cables ensure that signals remain clean and interference-free, even in environments with heavy electrical "noise" (EMI/RFI).

Construction Anatomy

To maintain signal purity, our cables feature a multi-layered defense:

  • 1. Conductor: High-purity Annealed Bare or Tinned Copper (Solid, Stranded, or Flexible).
  • 2. Insulation: PVC, Polyethylene (PE), or XLPE.
  • 3. Bifurcation (Pairs/Triads/Quads): Cores are twisted into pairs or triads or quads to cancel out electromagnetic interference.
  • 4. Individual & Overall Screening: AL-Mylar Tape with a Tinned Copper Drain Wire for 100% coverage.
  • 5. Braided Screening: for superior mechanical and high-frequency protection.
  • 6. Inner Sheath: Provides a smooth bedding layer of PVC and protects them from the armour.
  • 7. Armouring: Galvanized Steel Wire/Formed Wire (Strip) for mechanical protection in hazardous areas.
  • 8. Outer Sheath: Special PVC (FR/FRLS/LSZH) designed to be oil, chemical, and UV resistant.

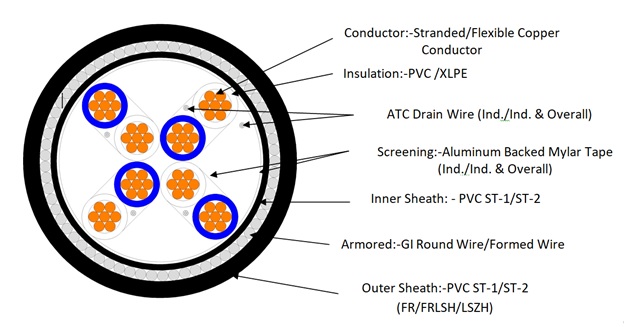

Cross Sectional View of Instrumentation Cable

Cross Sectional View of Instrumentation Cable

Relevant IS Standards (Indian Market)

Feature IS Standard Description
Design Standard IS 8130 / BS EN 50288-7 Specifications for instrumentation and control cables.
Conductors IS 8130 / IEC 60228 Copper conductor standards for signal cables.
Insulation/Sheath IS 5831 PVC insulation and sheath properties.
Armouring IS 3975 Mild steel wire/strip for protection.

Product Range & Bifurcation

PRIMECAB offers a wide variety of configurations to suit every industrial need:

  • Configurations: Single & Multi Pair, Individual or Overall Screened.
  • Pairing: 1P to 50P (Pairs) / 1T to 50T (Triads) for Number Pairs/Triads Tape.
  • Sizes: 0.5 sq mm, 0.75 sq mm, 1.0 sq mm, 1.5 sq mm, and 2.5 sq mm.
  • Identification: Color-coding or Number Printing on cores for easy installation.

Core Applications

  • SCADA Systems: Connecting field instruments to central control rooms.
  • Oil & Gas: Critical signal transmission in refineries.
  • Digital Signals: Connecting PLC/DCS systems to sensors and actuators.
  • Hazardous Areas: Our armoured versions are perfect for underground and explosion-prone zones.
