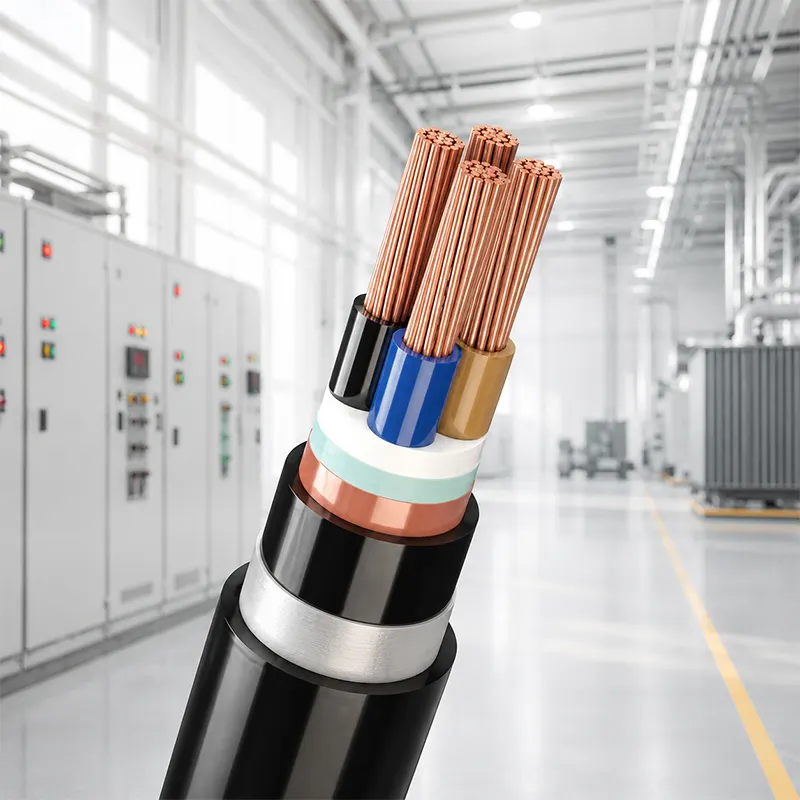

LV Power Cables

Prime Cables manufactures high-performance Low Voltage Power Cables designed for reliable power transmission and distribution applications up to 1.1 KV. Engineered with superior insulation and high-quality conductors, these cables ensure safe and eSicient distribution of electricity across industrial, commercial, and infrastructure projects. Built to withstand demanding operating conditions, they deliver durability, flexibility, and consistent electrical performance.

Our power cables are manufactured with copper / aluminium conductors with XLPE or PVC insulation, laid up, inner taped/extruded. The armoring is of galvanized mild steel wires/strips. The final outer sheath is with high grade FRLS PVC. (All as per relevant IS specification.)

• L.T XLPE Insulated & PVC sheathed, armoured / unarmoured cables with Copper and Aluminium conductor 1.1 KV grade in two, three & half, four core up to 400 Sq.mm. and single core up to 1000 Sq.mm
• L.T PVC Insulated & PVC sheathed, armoured / unarmoured cables with Copper and Aluminium conductor 1.1 KV grade in two, three & half, four core up to 400 Sq.mm. and single core up to 1000 Sq.mm.
• We also oZer Flame Retardant (FR), Flame Retardant Low Smoke (FRLS) & Zero Halogen Flame Retardant (ZHFR) properties to any of our Power Cables as per the requirement of the customers.
• We also OZer Heat Resistant (up to 85 Degree Celsius) features to our PVC Power Cable as per the requirement of the customer.
• We also have the design & technical capabilities to make power cables that can withstand short circuit on conduct &armour of 45 KVA for 0.12 sec, if required by the customer.
• We have also got the design, technical, production & testing capabilities to oZer power cables that are water resistant, for areas that are exposed to heavy flooding, if deemed by the customer.
